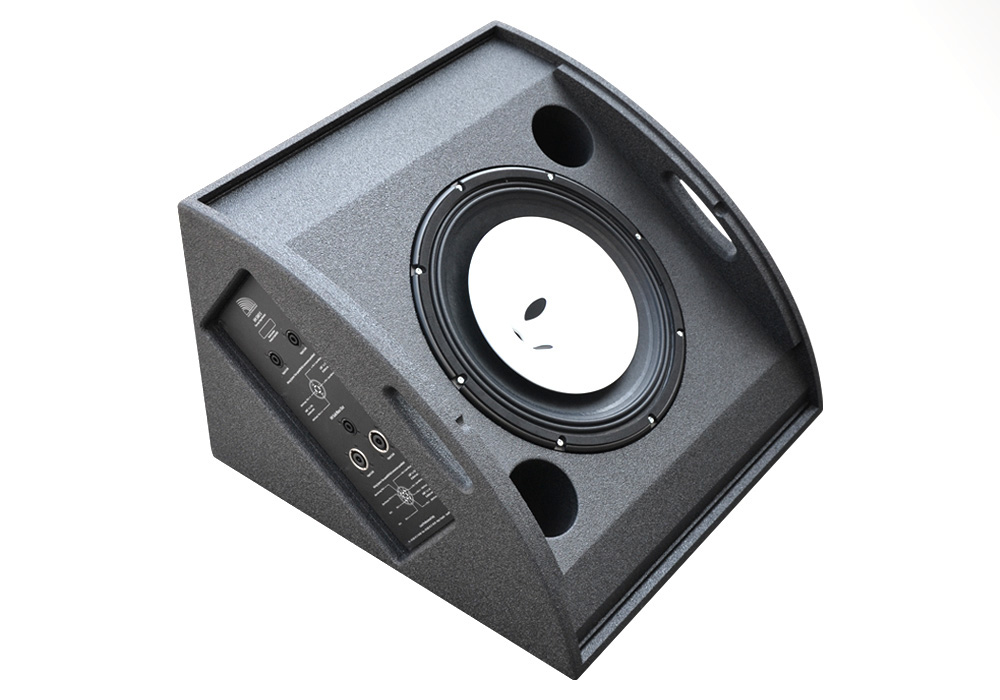

Born
to be a perfect on-stage live performer, VH SM15 is a multipurpose
full-range coaxial system particularly suited to all short-medium
throw sound reinforcement applications.
The system houses a 2.5in. diaphragm compression driver coaxially
mounted on a 15in. Low-Mid really compact and lightweight
Bass-reflex enclosure, giving a conical dispersion of 60 deg.
Delivering an accurately defined on stage coverage area it
is able to guarantee the best quality listening experience.
The VH SM15 is focused to ensure the most accurate frequency
response to the artists and performers as the result of its
incredible clarity and vocal intelligibility.
Amazing gain before feedback, precise pattern control, high
SPL output, low distortion and sensational Low-Mid extension
are the main VH SM15 features.
The system can be suspended using the height M8 threaded inserts
(four on the rear and bottom panels). The left side connections
panel features two paralleled SpeakON™ NL8 connectors,
two paralleled SpeakON™ NL4 connectors and one SpeakON™
NL4 dedicated Sub-Bass output connector, this last is extremely
useful when using the system as Drum Fill in combination with
a subwoofer unit, giving the necessary outlet.
Great performances, lightweight and compact dimensions make
this system incredibly smart and portable, just by broadening
the applications range.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time.
SM15 cabinet is constructed from Birch-ply and has an impact
and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging
Loud Professional Formula and VH subwoofer systems, significantly
boosting its LF extension.
Applications:
Theaters, Conference Halls, Concert Halls, Large Scale Discos,
Clubs.
|
