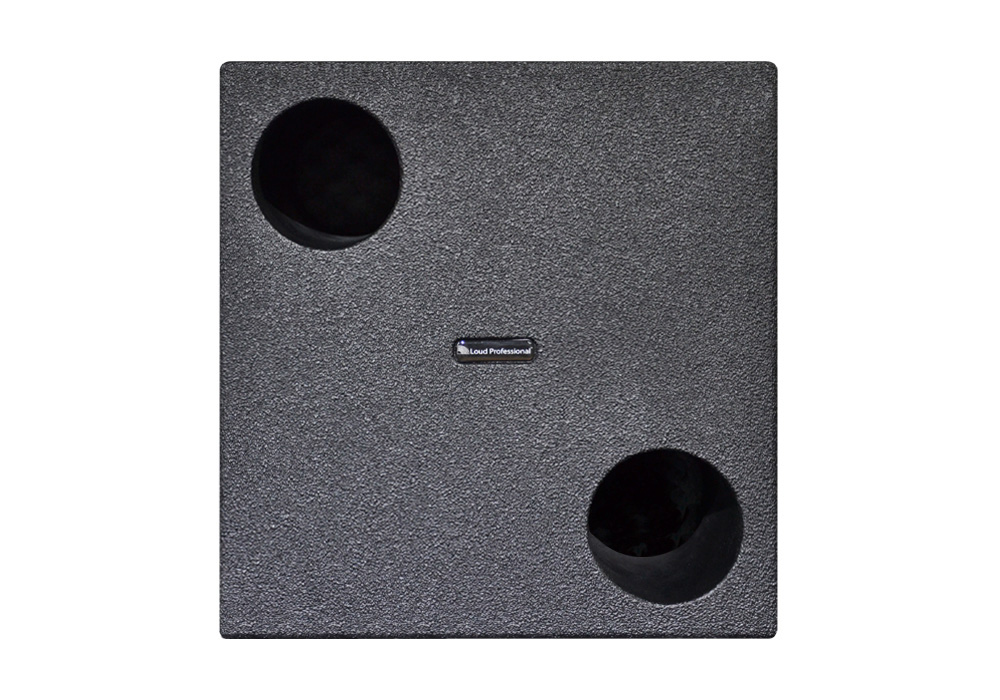

QuadraS
- HP maintains the same look of all Quadra speakers, it's
boxy in appearance but simply elegant! It's an installation-specific
Sub/Bass unit, featuring a single long excursion 8in. in a
Band-pass design, that provides incredible High Performances,
even if a small diameter transducer is in charge of it.
The Band-pass design produces significant performance benefits
in terms of efficiency, low distortion and deepest bass extension
down to 45 Hz (40 Hz @ -10dB), not comparable to traditional
vented box of equal size, always providing a clear and smooth
response for the maximum listening comfort.
QuadraS - HP has been designed to increase the Quadra Extended
Range speakers headroom, boosting their LF contour and offering
a really wide operating range from 40 Hz up to 20 kHz.
The close coupling of the two sub-systems (Sub/Bass and Extended
Range speakers), thanks to the right alignment, allows to
obtain a true stand alone Point source element, delivering
a coherent wavefront output across the entire reproducible
frequencies spectrum.
Two M6 threaded inserts on the top panel of QuadraS - HP make
it easier and faster. A M20 built-in adapter, on the same
top panel, allows all Quadra speakers to be pole mounted.
QuadraS - HP can also be hanged on the ceiling, a special
bracket favors the hanging of this unit, with or without each
Quadra Extended Range combined together.
QuadraS - HP is ideally suited for permanent or temporary
installed specific applications and it is also particularly
useful for all applications where high standard SPL are not
required, as well as distributed sound in small venues, Small
clubs, Lounge Bars & Restaurants and more others.
it is also an ideal companion for Home Dolby Cinema applications
as well as Broadcast and Studio Recording, thanks to its ability
to extend the response toward the low-end region.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time. QuadraS - HP cabinet is constructed from marine
Birch-ply and has an impact and weather protected PCP (Polyurea
Cabinet Protection) finish.
A color range (RAL Architectural program) makes all Quadra
speakers, for an easy integration, most appropriate for each
installation depending on the architectural and furniture
requirements.
Applications: Conference Halls, Theaters, Shops & Commercial
Centers, Small Clubs, Pubs, Lounge Bars & Restaurants,
Houses & Apartments, Ceremonies. |
