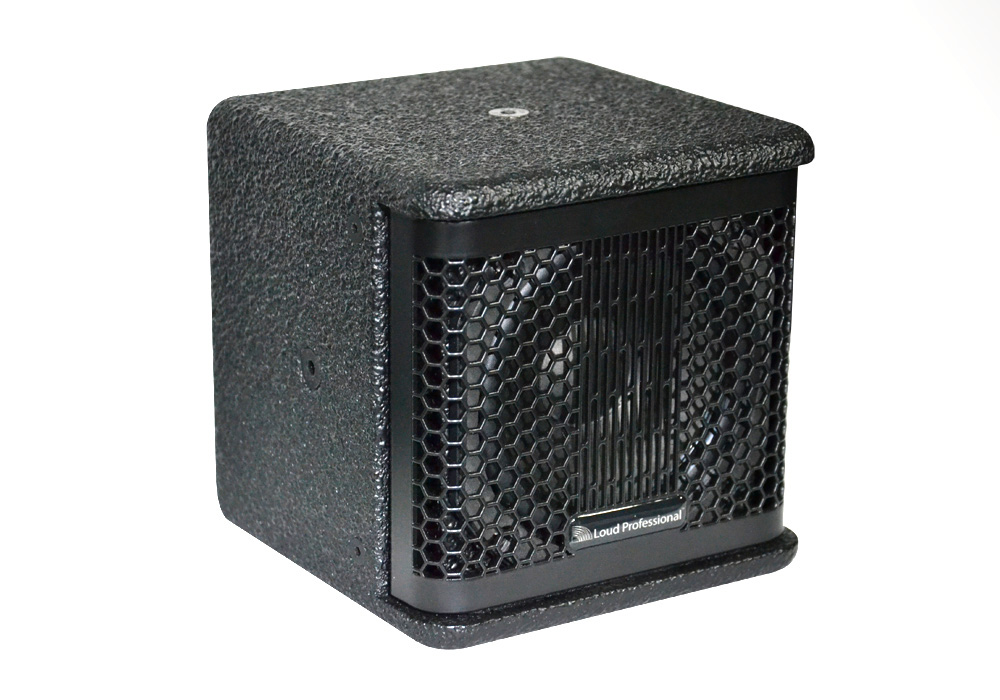

Quadra4,
"The Four", extra-small sized, is one of the smallest
speaker of the range. With all sides of 130 mm, it can be
quite literally handled in your hands. Weighs no more than
0,8 Kg and it can fit wherever you need, even in the most
unthinkable places.
Four, is the transducer dimension (4in.), it's the only one
installed on-board and it's one of the smallest Loud Pro Full
Range drivers never used before.
Logically supported in the lower frequencies response, it
is capable of delivering an extraordinary sound impact as
you cannot expect from speakers of that size.
Designed to be easily integrated in all kind of installations
where a distributed line is required, such as malls, shops,
restaurants, lounge bars, it also shows itself extremely useful
for residential uses and private ceremonies, physically blending
in the architecture and disappearing from the sight, mostly
thanks to its ultra-compact dimensions and to the customizable
colors of the box and the front cloth.
A complete range of accessories makes it happen. Quadra4 can
be wall/ceiling mounted using its own bracket fixable on both
sides (Left/Right & Top/Bottom), due to the four M6 threaded
inserts.
The same bracket can also be used to fix the speaker on the
QuadraS - HP top panel as close coupling, creating a true
stand alone Point source element.
All Quadra Full Ranges can be installed on a microphone stand
or on a standard speaker stand, this one using a dedicated
bracket adapter. The speakers can be tilted both cases.
A pole mounting kit allows the speaker to be installed on
top of a Sub/Bass unit (QuadraS - HP, NucleoS, GammaS8), boosting
its LF contour down to 45 Hz as a stand alone system.
It's reasonable to think this system usable for small-sized
live performance venues, but only if properly configured.
The rear side features two 4 pole Phoenix™ connectors,
extremely helpful for installed applications.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time.
Quadra4 cabinet is constructed from marine Birch-ply and has
an impact and weather protected PCP (Polyurea Cabinet Protection)
finish.
A color range (RAL Architectural program) makes all Quadra
speakers, for an easy integration, most appropriate for each
installation depending on the architectural and furniture
requirements.
Applications: Conference Halls, Theaters, Shops & Commercial
Centers, Small Clubs, Pubs, Lounge Bars & Restaurants,
Houses & Apartments, Ceremonies. |
