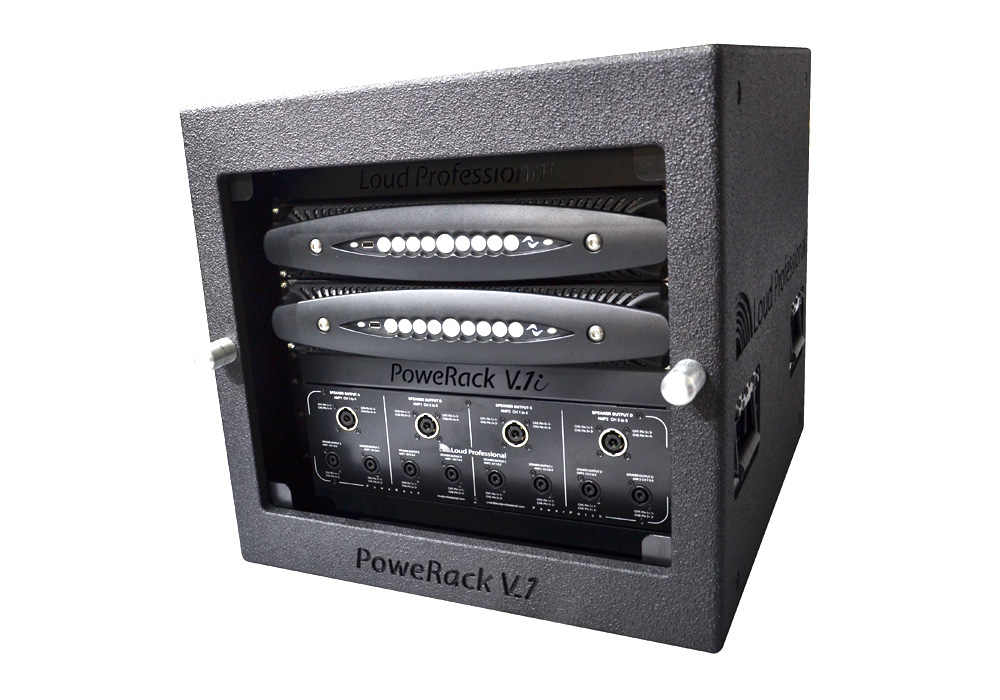

| PoweRack
V.1i is a professional amplifier pack expressly designed for
temporary and fixed installations. It comprises a sturdy vibrations
free flightcase, two Powersoft™ X8 amplifiers, the AC
Mains & Signals Patch and the PowePatch units.
A great amount of power can be delivered on demand from the
16 output amplifier channels (5.200 W Rms @ 2 Ω - 175
V peak). Two Ethernet network ports allow the remote control
of the on board amplifiers by the Armonia Pro Audio management
software.
The system manages Analog & Digital (I/O) audio signals.
The amplifiers feature (optional) a Dante card to send and
receive audio on a Dante network. This type of connection
utilises standard IP networks to transmit high-quality, uncompressed
audio, with near-zero latency.
The Dante signals network is completely built-in via Cat5e
(or higher) connection.
AC Mains & Signals Patch features a 32 A three-phase circuit:
one IN plug and one LINK OUT outlet to power a secondary rack;
The PoweRack V.1 is fed with AES/EBU signals through 2 IN
XLR3 connectors, each of them receiving 1 digital signal conveying
2 audio channels with link-out capability to other racks.
The patch also features 2 analog signals and 2 Ethercon I/O
connectors.
The Ethernet connectors allow the remote control of the rack
using Armonia management software system.
The PowerPatch unit combines all the 16 amplifier output channels
in four main sections: “SPEAKER OUTPUT A,B,C & D”;
each features a single Main NL8 and two slave NL4 speakON
output connectors. PowerPatch has been expressly designed
to connect, process & bring power on demand to the Loud
Professional speakers universe. All-in-one for all touring
applications, providing flexible solutions in every system
configuration.
A complete range of accessories and toolkits, such as different
cable standards (SpeakON & LK) , NL4/NL8 Adapters, Split
& Split Boxes, allow to always give the best wiring solution,

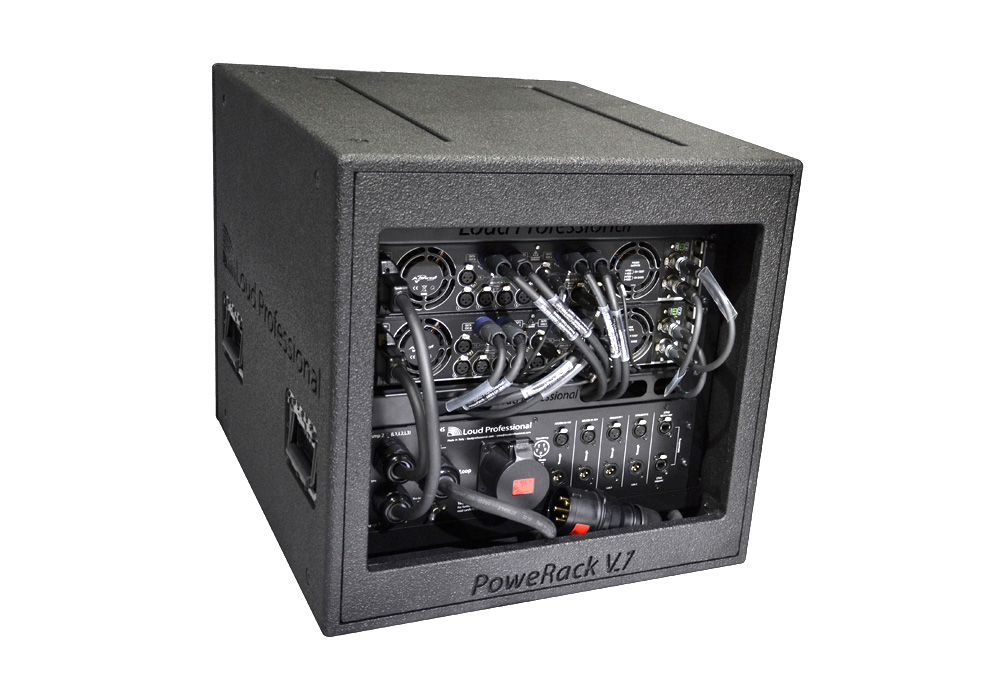

easily getting the system ready to start. The Rack is equipped
with a front and rear sliding door immediately having access
to all input and output sections. Racks can be stacked on.
The PoweRack series also comprises the V.2i version with only
one X8 on board amplifier, always featuring all the necessary
tools already above mentioned. |
