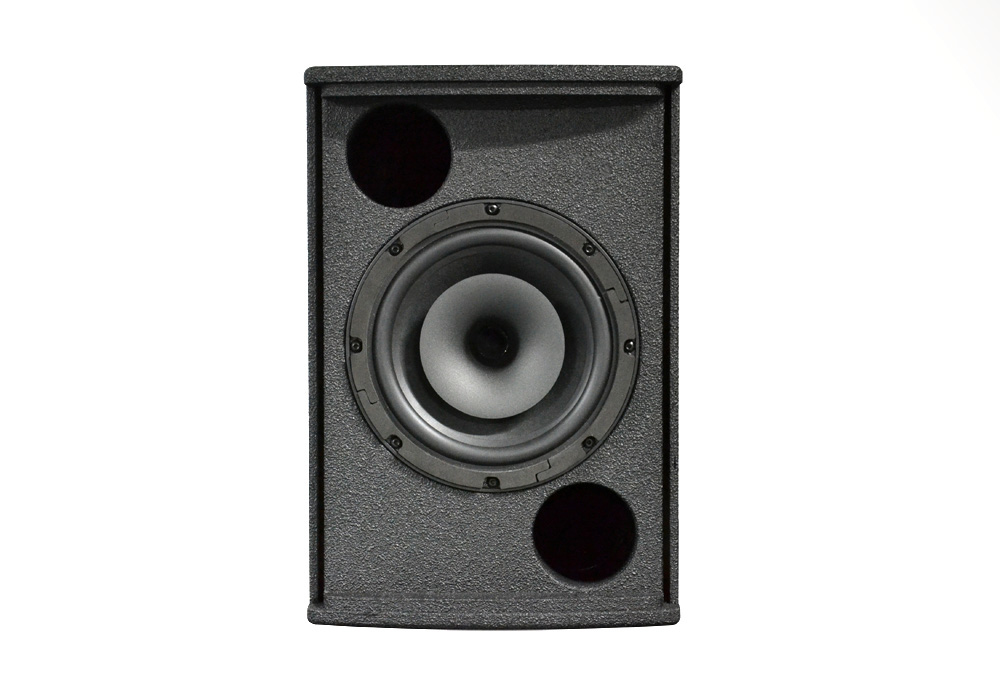

Gamma8
is an installation specific product, one of the smallest
Loud Professional Full Range system.
As each Gamma extended range speaker it features the same
Co-linear concept, housing a state of the art coaxial 8in.
transducer. The Co-linear design approach physically aligns
LMF and HF acoustic centers to obtain a single point source
configuration, delivering a coherent wavefront output across
the entire reproducible frequencies spectrum, free of comb-filtering
effects generated by traditional transducers couplings.
The result is un incomparable phase response, only recognizable
in high quality studio reference monitors, bringing studio
quality to short-medium throw professional sound reinforcement.
Its conical waveguide gives a dispersion of 70° on both
Horizontal and Vertical axis.
The same HF directivity pattern makes all Gamma extended
range speakers compatible each other, key factor extremely
useful in every permanent or temporary installation. The
optimized vented box offers an efficient lower response
down to 65 Hz (55 Hz @ -10 dB) despite of the smaller cone
driver dimension.
The Gamma8 double angled enclosure can be successfully employed
as multipurpose system as well as: Stage monitor, PA or
Front Fills and In/Out Fills, from small to medium-sized
venue.
The really low profile makes the speaker extremely useful
in all applications where not so high ceilings require small
dimensions.
The system can be successfully supplemented with the GammaS8
Sub-Bass enclosure, boosting its lower response down to
45 Hz and always offering the Loud Professional legendary
comfort listening.
A complete range of rigging accessories makes easier and
faster all the deployments such as ceiling-mounted or stacked
offering multiple set-up options and various orientations.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time. Gamma8 cabinet is constructed from marine Birch-ply
and has an impact and weather protected PCP (Polyurea Cabinet
Protection) finish.
A color range (RAL Architectural program) makes all Gamma
speakers, for an easy integration, most appropriate for
each installation depending on the architectural and furniture
requirements.
Applications: Conference Halls, Theaters, Ceremonies, Shops
& Commercial Centers, Small Clubs, Pubs,
Lounge Bars & Restaurants.
