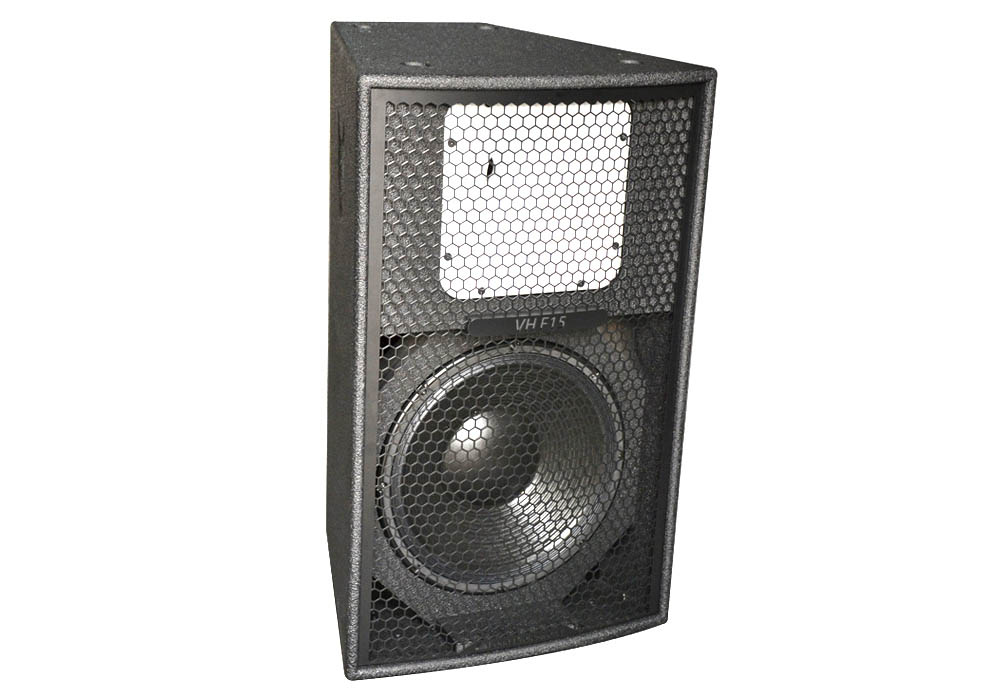

F15
is a two way point source system optimized for medium throw
applications, incredibly compact for its LF output performance
in a single wide-bandwidth bass-reflex enclosure.
The system houses 1 x 15in. (380mm) LMF transducer and 1 x
2in. (50mm) exit MHF compression driver mounted on 60deg.
H x 40deg. V constant directivity horn, operating from 1k5Hz
upwards, intended for a wide range of permanently installed
applications. Thank to its frequency response extended from
50 Hz to 20 kHz, the F15 can be used as a stand-alone full
range system, or supplemented with a Loud Professional subwoofer.
It can be stacked on top of a subwoofer system or flown individually.
The F15 is configured in a vertically formatted, trapezoidal
Birch-ply cabinet and fitted with eight M10 threaded inserts
to facilitate the individual horizontal or vertical suspension.
A dedicated flybar-kit, expressly designed for fixed or temporary
installations, allows the cluster building of three units
coupled together.
A connector plate to be installed on top and bottom sides
allows the perfect alignment of the clustered speakers front.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time.
F15 cabinet is constructed from marine plywood and has an
impact and weather protected PCP (Polyurea Cabinet Protection)
finish.
The system can be as well matched with all the most challenging
Loud Professional Formula and VH subwoofer systems, boosting
its LF extension.
Applications: Theaters, Conference Halls, Concert Halls, Large
Scale Discos, Clubs & Bar. |
