VH

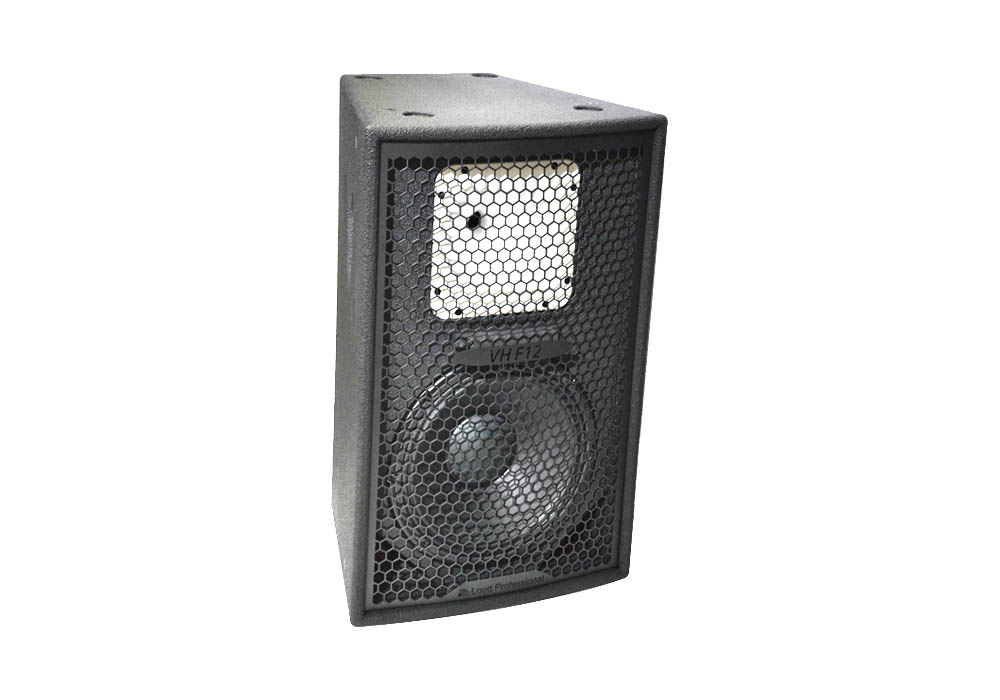

F12 is a two-way point source system optimized for short to
medium throw applications, incredibly compact for its LF output
performance in a single wide-bandwidth bass-reflex enclosure.
The system houses 1 x 12in. (320mm) LMF transducer and 1 x
1in. (25mm) exit compression driver mounted on 60deg. H x
40deg. V constant directivity horn, operating from 1.2 kHz
upwards, intended for a wide range of permanently installed
applications.
An internal passive crossover provides the perfect transducers
alignment also being more cost effective in terms of used
amplifier channels.
Thanks to its extended frequency response, from 60 Hz to 20
kHz, the F12 can be used as a stand-alone full range system
or supplemented with a Loud Professional subwoofer; it can
be stacked on top of a subwoofer system or flown individually
using the M8 threaded inserts.
The VH F12 is configured in a vertically formatted, trapezoidal
Birch-ply cabinet and fitted with eight M8 threaded inserts
to facilitate individual horizontal or vertical suspensions.
A dedicated flybar-kit, expressly designed for fixed or temporary
installations, allows the cluster building of three units
coupled together.
A connector plate fixed on top and bottom cabinet sides allows
the perfect alignment of the clustered speakers front.
A complete range of rigging accessories makes easier and faster
other deployments such as wall-mounted, ceiling-mounted or
stacked offering multiple set-up options and various orientations.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time.
VH F12 cabinet is constructed from Birch-ply and has an impact
and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging
Loud Professional Formula and VH subwoofer systems, boosting
its LF extension.
Applications: Theaters, Conference Halls, Concert Halls, Large
Scale Discos, Clubs & Bar. |
