Formula
F1512 is the latest Loud Pro Line Array generation system
designed to meet the needs of the most challenging audio market
users.
A plenty full-bandwidth low frequency response, extended down
to 40 Hz, allows the system to be used without subwoofer units
in many applications where additional low frequency extension
is not essential.
Its special Band Pass and horn loaded design enables to achieve
the best performances you cannot expect in a really compact
enclosure, performing in every kind of applications where
high SPL outputs, extended and really flat response, uniformity
and great off-axis coherence are required.

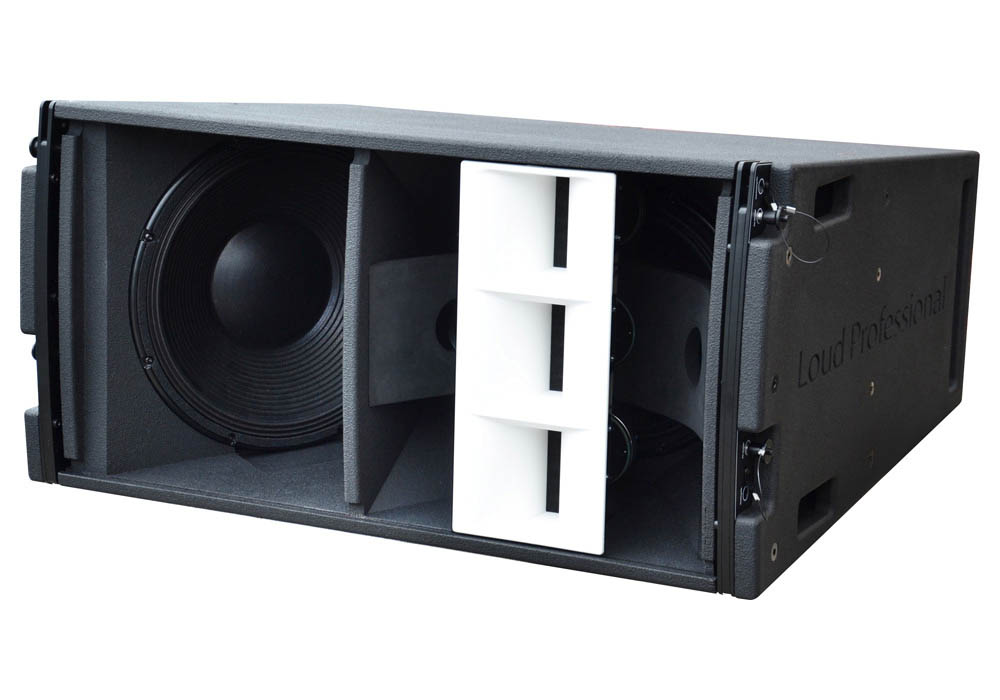

F21512 combines a generous long excursion 15in. Low-Mid woofers,
a 612in. powerful Low-Mid woofer and three 4in. planar wave
compression drivers giving a dispersion of 90 degrees and
10 degrees on the horizontal and vertical axis.
The 12in. Low-Mid woofer, the heart of the system, has a really
wide operating range from 150 Hz up to 1.2 kHz, focusing on
a greater Low-Mid impact.
Thanks to its Horn Loaded design the prompt and fast transient
response is unique as you’ve never heard before!
The 15in.+12in. combination gives an unexpected punch together
with a special impact the Low-Mid region, where most of the
traditional system are critical.
The Formula F1512 Mid-Hi frequency section comprises three
particular flat annular ring diaphragm,combined with a strong
Neodymium magnet and a proprietary double parabolic (4in.
x 1in.) planar waveguide.
The driver radiates a coherent planar wavefront output, performing
as a rectangular piston without internal diffractions, due
to the special phase plugs placed within it, for superior
control directivity and high fidelity frequency response,
also providing extremely high sensitivity.
This special long throw device is characterized by a clear
and transparent sound, transferring a comfortable flat and
smooth response.
Greater is the coherence on the horizontal and vertical axis,
the Mid-Hi perfect acoustical coupling of individual units
is maximized creating a continuous line source, allowing to

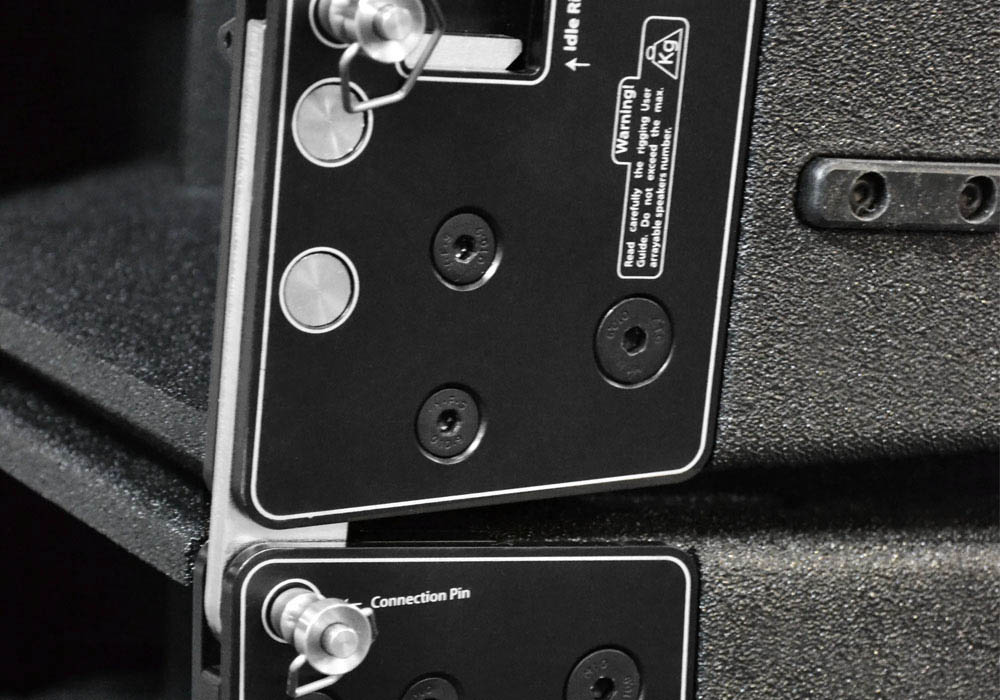

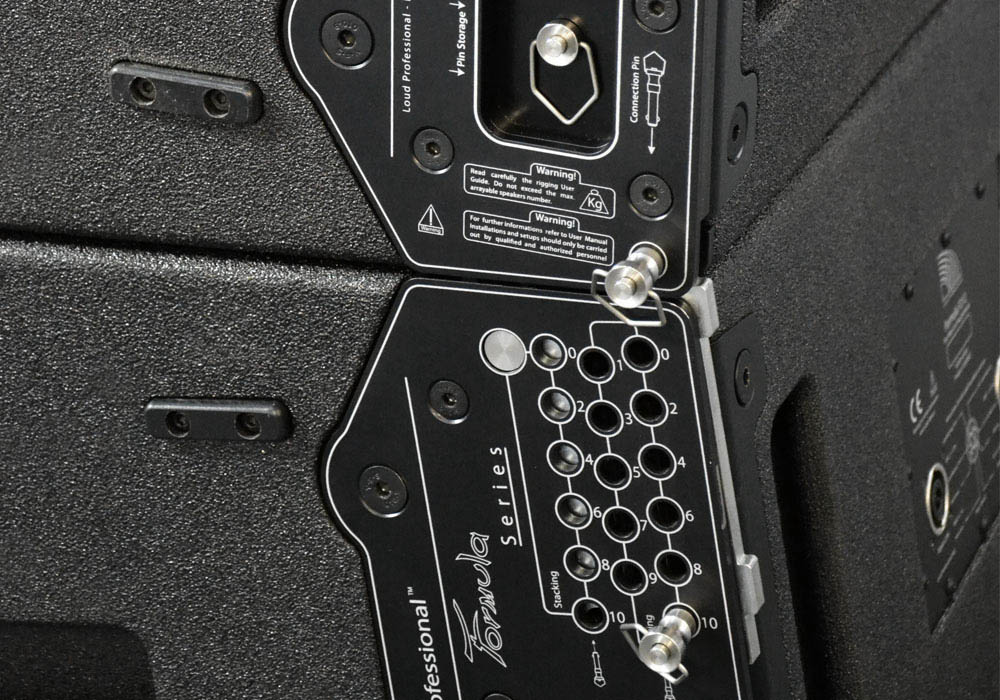

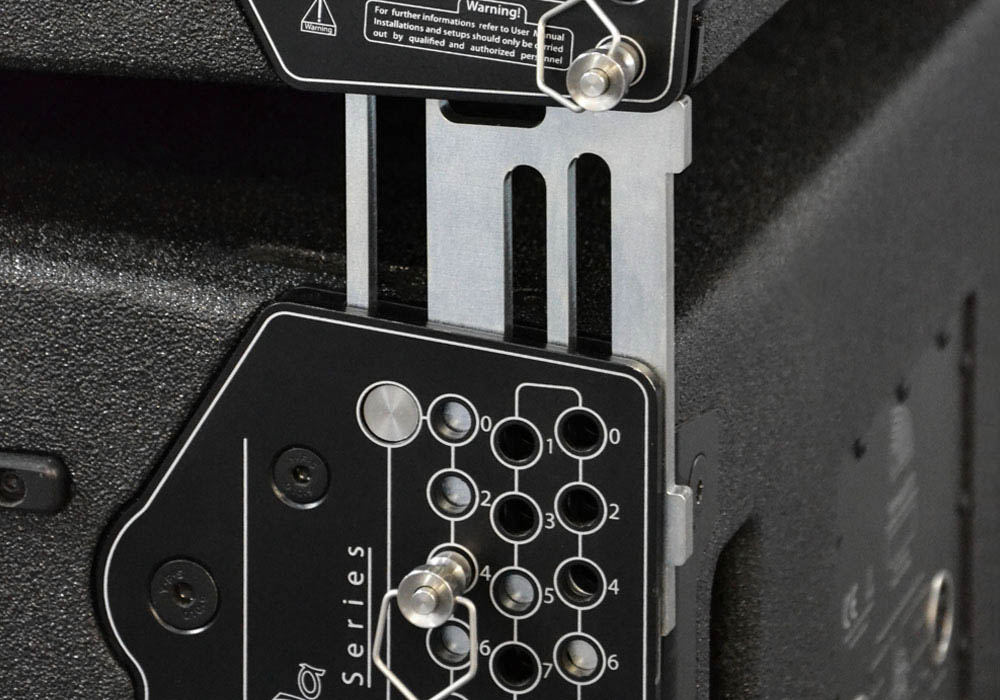

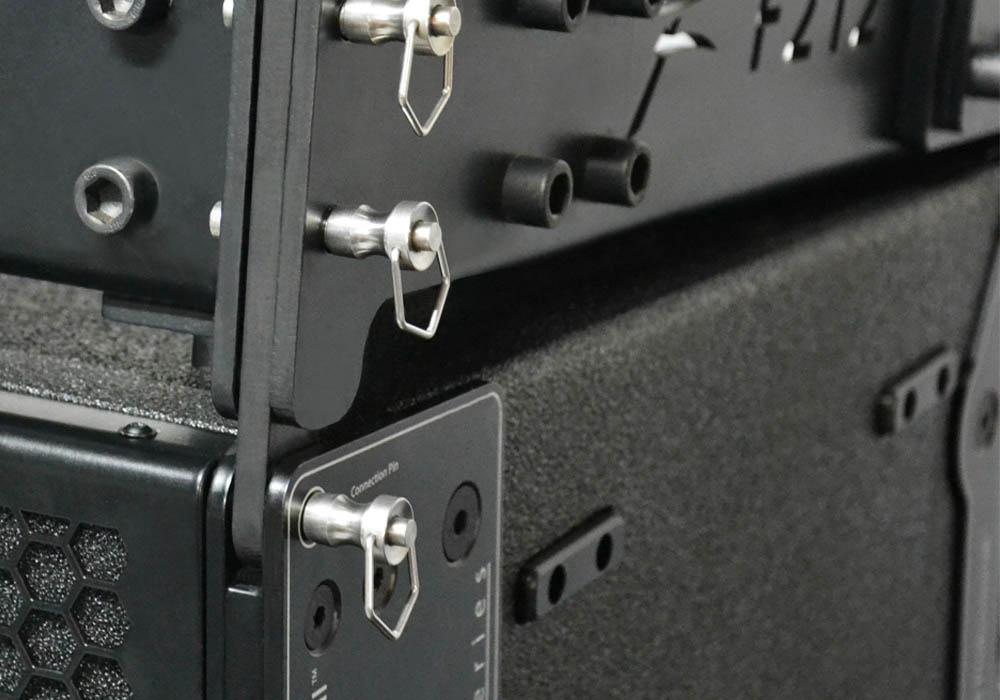

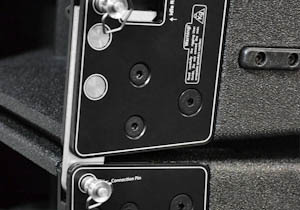

achieve really large distances. Easiest is the system setup

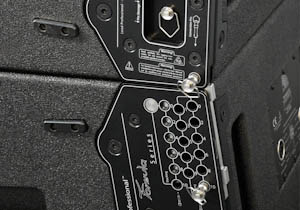

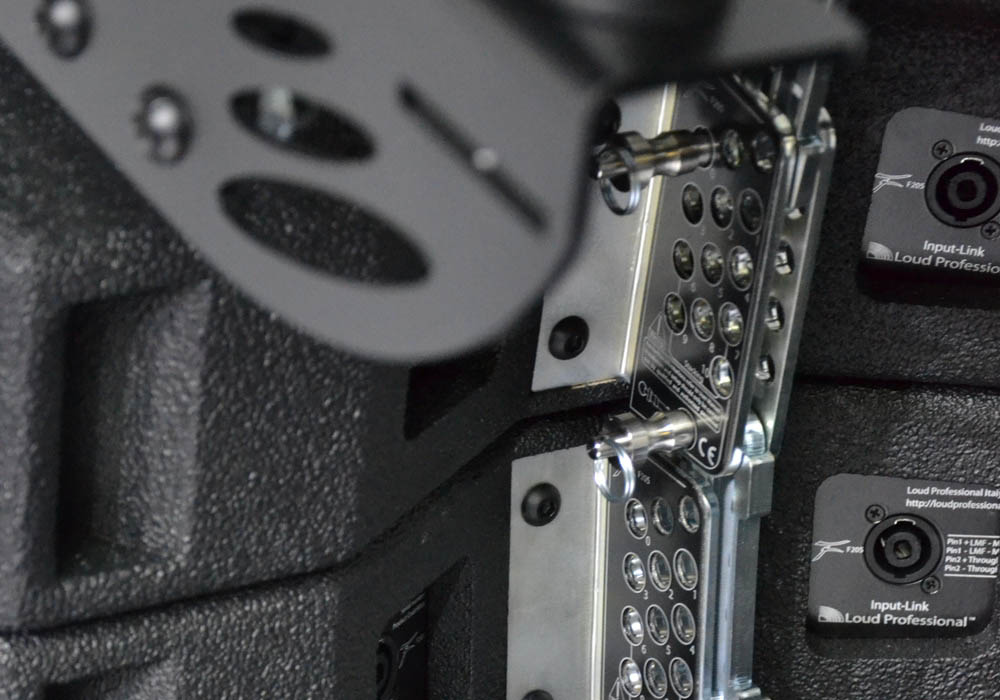

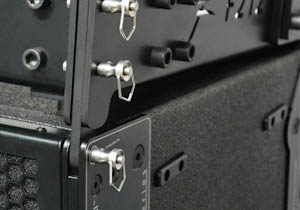

thanks to the proprietary box integrated Formula quick rigging
solution.

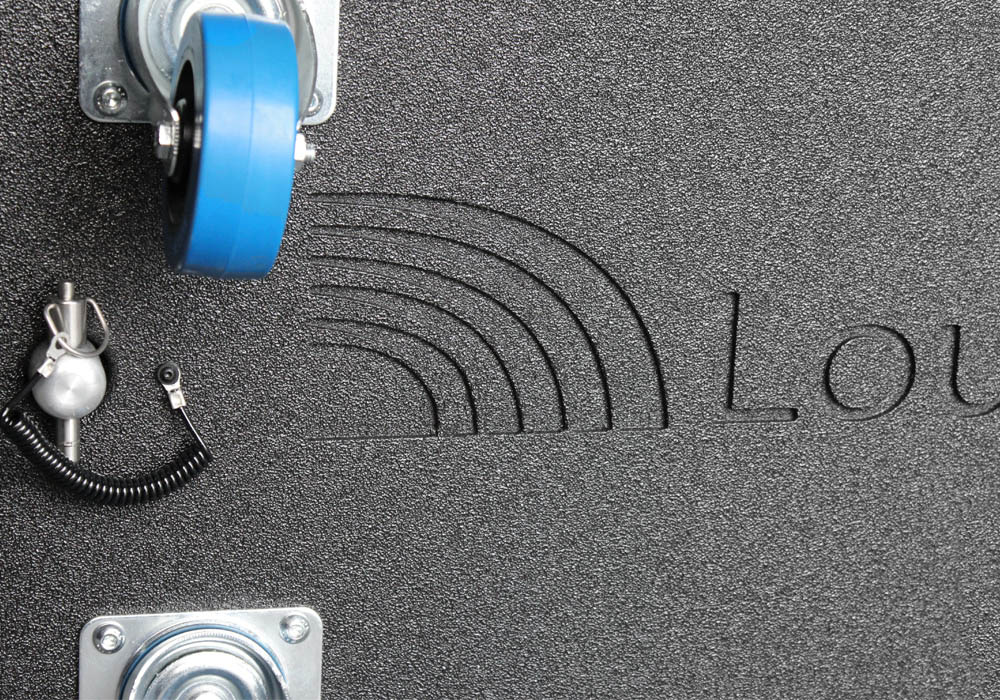

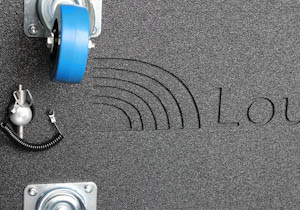

A three units dolly makes easier both transportation and building
setup. Only two persons can manage the maximum configurable
24 elements array.
A complete range of rigging accessories make easier and faster
all deployments such as ceiling-mounted or stacked configurations
offering multiple setup options and various orientations.
Significant construction criteria, combined with the latest
technologies and innovative materials, ensure a great reliability
over time.
F1512 cabinet is constructed from marine Birch-ply and has
an impact and weather protected PCP (Polyurea Cabinet Protection)
finish.

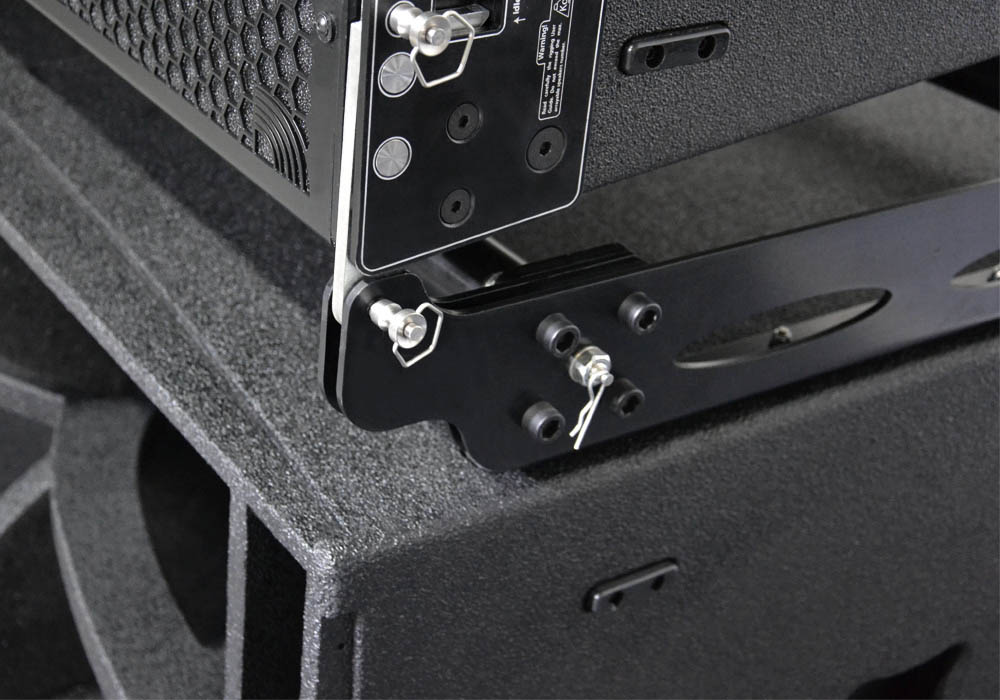

The system can be as well matched with all the most challenging
Loud Professional Formula and VH subwoofer systems, significantly
boosting its LF extension.
Applications: Large Open Air Venues, Arenas, Stadiums, Theaters,
Conference Halls, Concert Halls, Large Scale Discos &
Clubs. |
